Globe Valve

Home Products Globe Valve

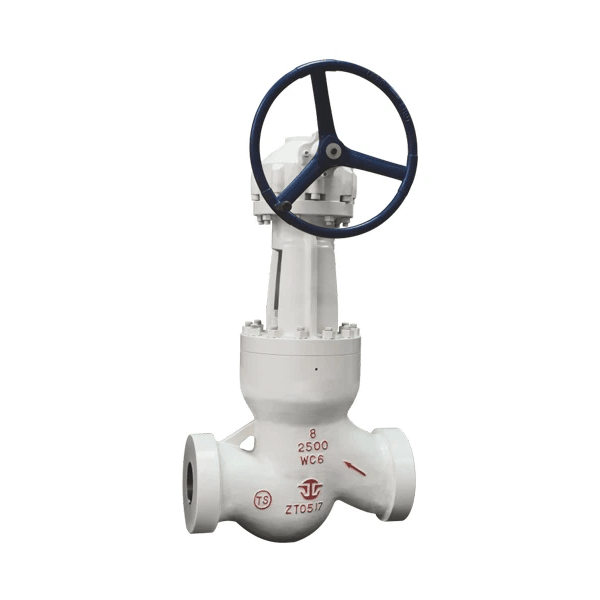

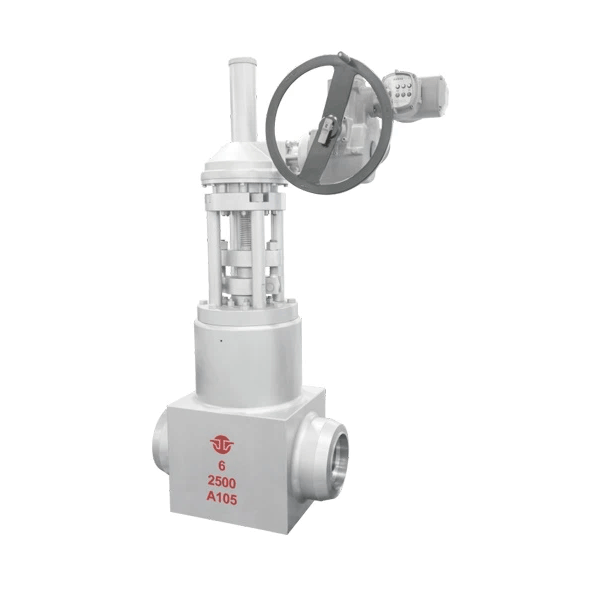

Super High Pressure Globe Valve

Straight patteren body design OS&Y,outside screw and yoke, PSB pressure seal bonnet,yoke integral with bonnet,rising stem and handwheel,loose disc,choice of plug or ball,renewable seat ring,impact handwheel for 10"& above,horizontal service,flanged or buttwelding ends,available with BG operator.

Product Description

Straight patteren body design OS&Y,outside screw and yoke, PSB pressure seal bonnet,yoke integral with bonnet,rising stem and handwheel,loose disc,choice of plug or ball,renewable seat ring,impact handwheel for 10"& above,horizontal service,flanged or buttwelding ends,available with BG operator.

Super high pressure globe valve,Size:0.12"~1"(DN3~DN25),Class:PN250~PN320,Material:Cr-Ni-Mo,Temperture ℃ 0~280,Applied standard:JB/T 1308,JB/T 1309,ANSI B16.34,ANSI B16.10,B16.25,Flange teyp:RF,RTJ,BW,Pipe Connector,Structure:Needle disc,Operation:Manual,Suitable Medium:Ethene,Polythene.

Hot Tags: super high pressure globe valve, China, suppliers, manufacturers, factory, in stock, made in China
