Globe Valve

Home Products Globe Valve

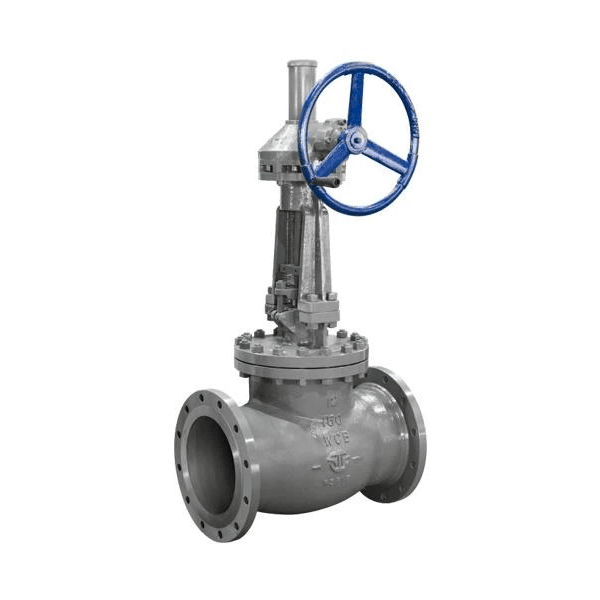

ANSI Globe Valve

Cast steel globe valve designed and manufactured to provide maximun service life and dependability,All globe valves are full ported and meet the design requirements of American petroleum institute standard BS1873,BS EN13709 and geneerally conform to American sodiety of mechanical engineers standard ASME B16.34,Valves are available in a complete range of body/bonnet material and trims.

Product Description

Cast steel globe valve designed and manufactured to provide maximun service life and dependability,All globe valves are full ported and meet the design requirements of American petroleum institute standard BS1873,BS EN13709 and geneerally conform to American sodiety of mechanical engineers standard ASME B16.34,Valves are available in a complete range of body/bonnet material and trims.

Standard body/bonnet materials include nine grades of carbon,low alloy and stainless steels.For special apolications they can be supplied in other grades of alloy and stainless steel.there is a full range of trim materials to match any service.Optional packing and gasket material are available for a full range of service conditions.

Straight patteren body design OS&Y outside screw and yoke BB,bolted bonnet,yoke integral with bonnet,rising stem and handwheel,loose disc,choice of plug or ball ,renewable seat ring,impact handwheel for 10"& above horizontal service,flanged or buttwelding ends available with BG operator.

ANSI globe valve,Size:2"~24"(DN50~DN600),Class:150~2500,Material:WCB,CF8,CF8M,Temperture ℃ 0~425,Applied standard:BS1873,ANSI B16.34,ANSI B16.10,B16.25,

Flange teyp:RF,RTJ,BW,Structure:Bolted bonnet,Operation:Manual(worm gear),Pneumatic,Electric,Suitable Medium:water,steam,oil,acids.
