Gate Valve

Home Products Gate Valve

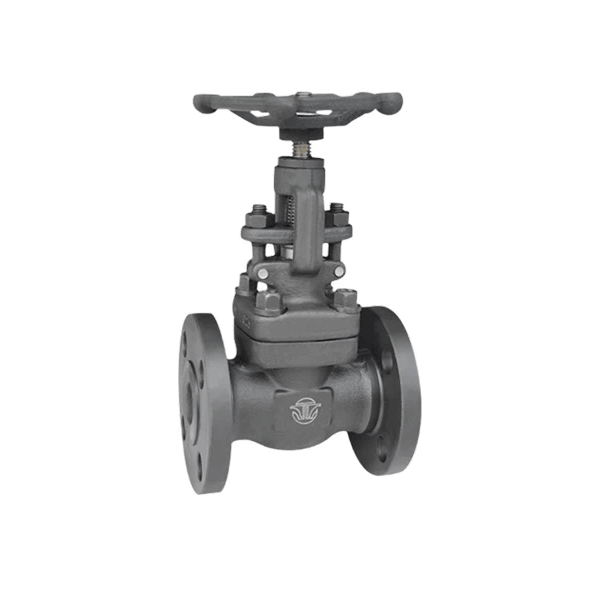

Forged Steel Gate Valve

Outside screw and yoke(OS&Y),bolted bonnet single wedge,fully guided renewable seat rings yoke integral with bonnet,rising stem and non-rising handwheel,SW(socket-welding) ends,SC(screwed) ends,BW(buttwelding) ends,flanged ends.

Product Description

Outside screw and yoke(OS&Y),bolted bonnet single wedge,fully guided renewable seat rings yoke integral with bonnet,rising stem and non-rising handwheel,SW(socket-welding) ends,SC(screwed) ends,BW(buttwelding) ends,flanged ends.

Forged steel gate valve,Size:1/2"~2"(DN15~DN50),Class:150~800,Material:A105,304,316,Temperture ℃ 0~425,Applied standard:ANSI B16.34,ANSI B16.10,B16.25,MSS SP-84,

Flange teyp:RF,RTJ,BW,SW,NPT,Structure:Forged,Operation:Manual,Pneumatic,Electric,Suitable Medium:water,steam,oil,acids.


Hot Tags: forged steel gate valve, China, suppliers, manufacturers, factory, in stock, made in China

Send Inquiry

If you have any enquiny about quotation or cooperation,please feel free to emal us at sales@outong-group.com or use the folowing enuiry form.
Our sales representative will contact you within 24 hours. Thank you for your interest in our products
